Welcome to Supreme Cylinder Heads a
West Australian owned and operated
Cylinder Head Repairer.
Catering for small petrol engines to large diesel.
Supreme Cylinder Heads is a Supplier
of
New
and
Reconditioned Cylinder
Heads in
Please Also Note What You Get Below :
|

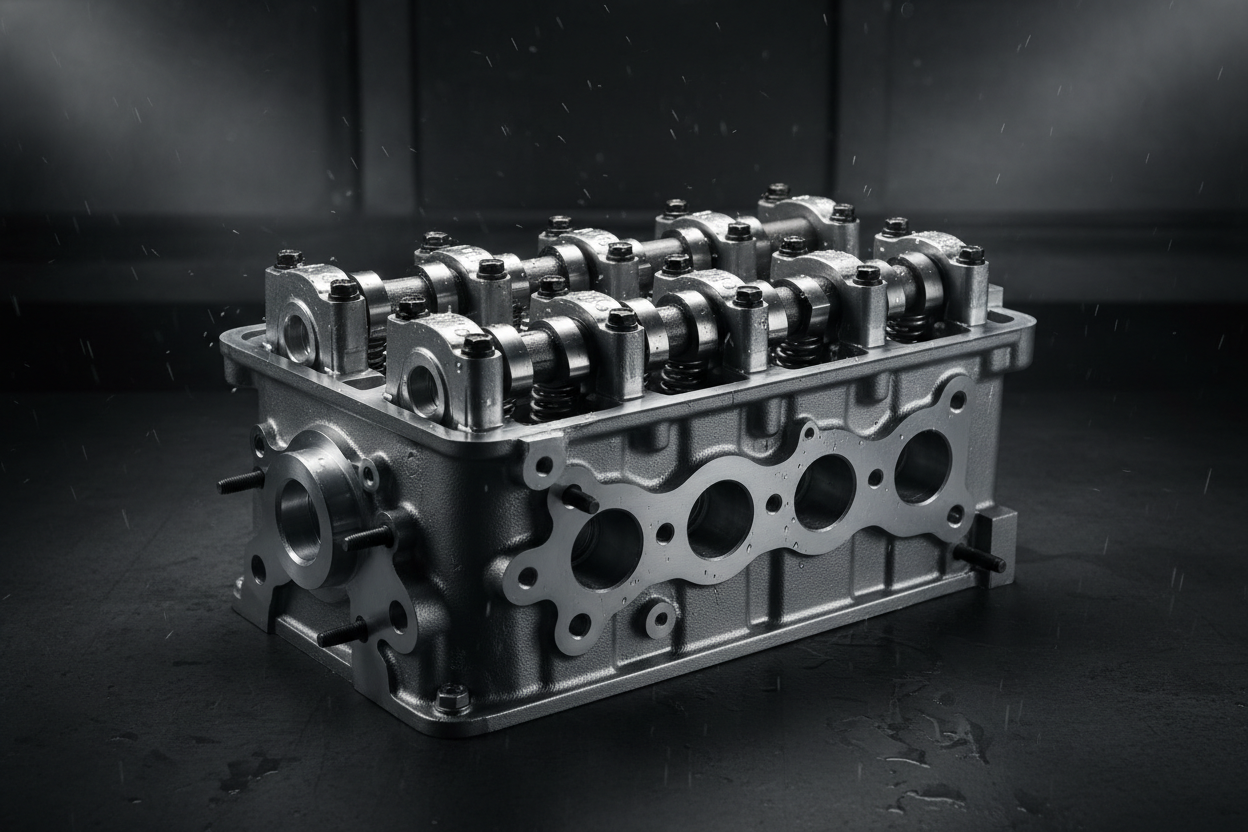

*Assembled New Cylinder Heads are Bare New Heads assembled with components from your original head. *Assembled New Cylinder Heads priced as -Complete- are all New. *All Heads are Sold on an Exchange Basis - Most New Heads are suitable for LPG *All Prices Include GST |
At
Our step by step
process for Reconditioning Cylinder Heads
1.
Hot washed with special
cleaning chemicals
2.
Strip heads and examine
all parts for wear and replace as
required
3. Check Cylinder Head hardness to Manufactures specification
4. Check Cylinder Head for thickness to meet Manufactures specification
5. Check Cylinder Head to see if it is bent
6. All manifold studs removed and threads checked
7. All heads are pressure tested and cast iron heads are crack tested as well
8. Welding and straightening if required is done
9. The Cylinder Head is pressure tested again
10. If required valve guides are renewed
11. Valve seats cut and valves refaced
12. Cylinder Head face is machined
13. Prior to assembly the Cylinder Head is washed again
14. Cylinder Head is reassembled with new valve stem seals
15. Valve clearance is done for models with shim tappets
16. Valve stem heights are set for models with hydraulic tappets
17. Final product is quality checked and then shrink wrapped to protect it from contamination for final dispatch
The above list of Cylinder Head Reconditioning processes covers the major steps and there many other processes that only quality head reconditioners apply.
Cleaning by Sand or Bead Blasting is not carried out on our cylinder heads because it is impossible to guarantee all of the abrasive material is removed from the finished product. Abrasive material can destroy threads and contaminate engine oil.
One more reason to consider us for your next machine job or reconditioned cylinder head is our 12 month unlimited Kms warranty on all our fully reconditioned or new cylinder heads.
If your product is not listed or you wish to discuss anything give us a call or drop us an email
Just click on the Free Quote Link and fill in the form and tell us what you are after and I will be in touch, with prices including any current special offers or discounts.
